ACD-V Description

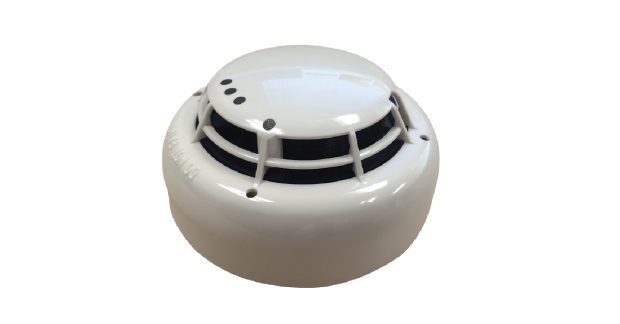

ACD-V, a Multi-Criteria Sensor that is particularly suited for detecting smoke produced by the wide range of combustibles found in various applications. Temperature monitoring is achieved by thermistors placed for optimum sensitivity. Also, the sensor is suited for detecting deadly levels of carbon monoxide (CO).



Hochiki's unique design allows fast response to flaming/smoldering fires and carbon monoxide levels while minimizing nuisance alarms.



Features & Specifications

- Low profile - only 2” high

- Simple and reliable device addressing

- Supports 16 operational modes

- Automatic compensation for sensor contamination

- Built-in fire test feature



Operating Voltage: 24 – 41VDC
Standby Current: 600μA
Alarm Current: 30mA
Transmission Method: DCP - Digital Communication Protocol

Weight: 4.2oz (5.9 oz. with 4” base)
Dimensions: 3.9”D x 1.56”H
Recommended Base: ASBL
