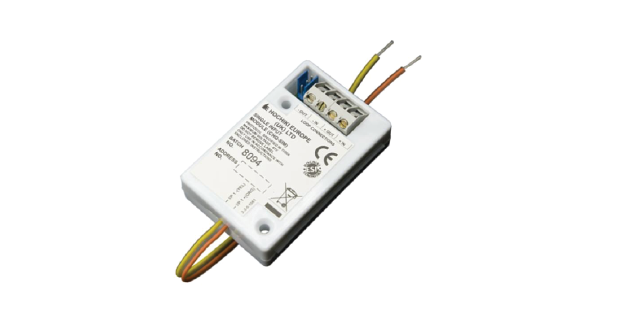

CHQ-SIM Description

CHQ-SIM has been designed to allow a single monitored input to be connected to the ESP loop. This provides a compact, low-cost option where the installation of the larger CHQ ‘Smart-Fix’ Range of Modules might be difficult



CHQ-SIM features flying leads as well as a wiring terminal block for loop connection, making installation quick and easy. The unit is addressed with the TCH-B200 Hand Held Programmer utilizing the onboard programming connector and a PL-3 lead.



Features & Specifications

- Includes a single monitored input

- Small design for the simple provision of a monitored input onto an ESP loop

- Flying leads for easy installation

- Addressed with TCH-200 Hand Held Programmer

- Approved by LPCB & VdS



Ordering Codes: CHQ-SIM

Operating voltage: 17 – 41 VDC

Quiescent Current / Alarm Current: 150 μA (at 41 V) max

Operating temperature range: -10 °C to + 50 °C

Storage temperature range: -20 °C to + 60 °C
