DFJ-AE3 Description

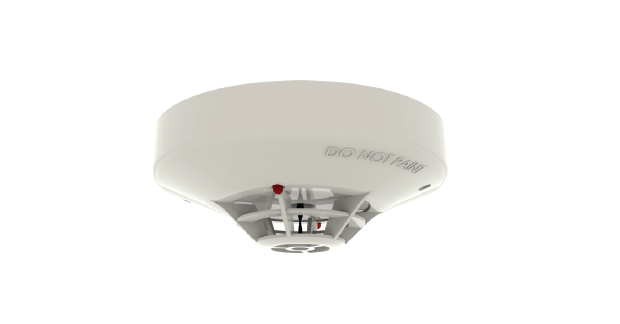

DFJ-AE3 is a 60°C Fixed Temperature Heat Detector using a thermistor and linearising circuit to provide an accurate linear response Heat Detector. A third terminal provides integral remote indicator output.



DFJ-AE3 is ideal for use where medium ambient temperatures exist, such as drying rooms or where Smoke Detectors are unsuitable because of the presence of steam or cooking fumes such as in a kitchen.



DJF-AE3 is supported by a wide range of bases for different applications and these are supported on the majority of conventional systems. A third terminal provides remote indicator output.



Features & Specifications

- Electronic linear heat detection

- Remote Indicator output

- Wide voltage range (9.5 ~ 30 V dc)

- Fixed Temperature Detector

- Approved by LPCB & VdS



Ordering codes: DFJ-AE3 - Ivory | DFJ-AE3(WHT) - White
Operating voltage: 9.5 – 30 VDC
Quiescent current: 35 µA

Operating Temperature Range: -10 °C to +50 °C
Operating Temperature Range: -30 °C to +70 °C
Colour / Case material: Ivory or White / Modified Polycarbonate
