HCP-W(SCI) Description

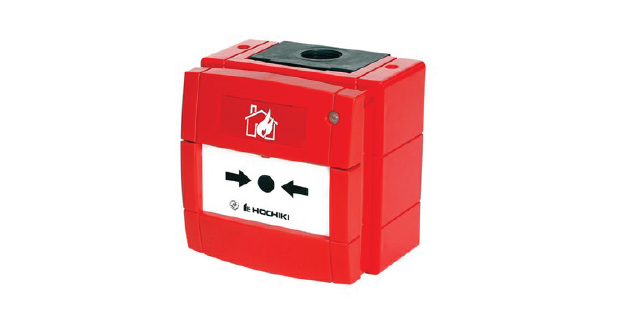

HCP-W(SCI) is a weatherproof Manual Call Point with an integral short-circuit isolator, which is fully compatible with Hochiki’s ESP analogue addressable protocol. The unit incorporates a bi-colored LED, which can be selected as pulsing/non-pulsing*1 for communications polling and is continuously lit when the HCP-W(SCI) is operated – in these two states the LED will show red.



The LED will show amber when a short-circuit is present but will switch to red if the unit is activated. The unit operates by pressing the EN54 compliant non-frangible (plastic) element and produces a high-level ESP interrupt. A built-in test function initiated by the control panel ensures the integrity of the device at all times and the device can be tested by insertion of a test key in the underside of the unit. Two terminal blocks are provided for easy connection to the loop wiring.



The unit is addressed using the TCH-B100 Hand Held Programmer for quick and reliable addressing. An optional glass element is also available.



IMPORTANT NOTE: After changing the element from Glass to Flexi, please confirm the operation by pressing the resettable element



Features & Specifications

- Fast response

- Non-frangible element fitted as standard (conforms to EN54)

- IP67 rated

- LPCB approved to EN54

- SIL Level 2 approved variants available



Ingress protection rating: IP67

Colour / case material: Red / Modified Polyphenylene Oxide

Operating voltage: 17-41VDC

Low power mode: 180 µA (max), 100 µA (typ)

Weight (g) / Dimensions (mm): 234 / W 98 x H 94 x D 78
