SPC-24 Description

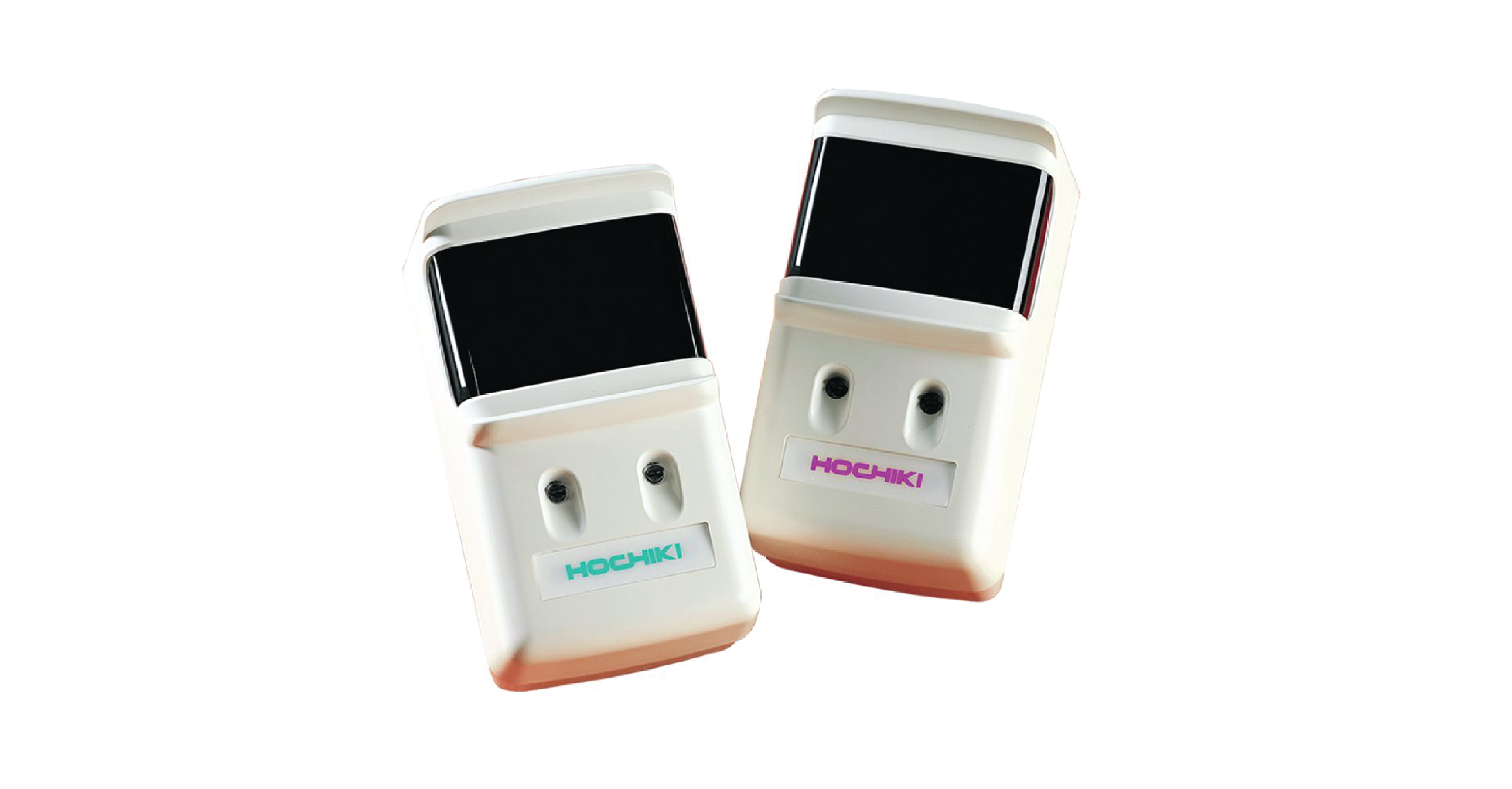

The Hochiki SPC-24 Projected Beam Smoke Detector consists of an emitter and receiver. The SPC-24 detector should be placed so that smoke generated by a fire will likely rise into the path of the beam.

The receiver is constantly monitoring and measuring the intensity of the beam transmitted by the emitter. Should the smoke from a fire cause a decrease in the signal strength of a magnitude that exceeds the programmed obscuration setting, an alarm signal is generated.



Features & Specifications

- Microprocessor-based for reliability

- Simple setup and alignment with signal strength LEDs

- Provides 60 feet on center linear protection at a range of 32.8 feet to 328 feet

- Automatic compensation for signal drift or dirty lens

- Three field adjustable sensitivity settings



Ordering code:  ACC-EN - Ivory / ACC-EN(WHT) - White / ACC-EN(BLK) - Black

Operating Voltage: 17 – 41 VDC

Low Power Mode: 120 μA (typ.)

Quiescent Current: 400 A μA (typ.)

Alarm Current (controlled by CIE): 9.1 mA (excluding remote indicator)
